MaK Machinefabriek Bolier

Bolier is the official representative of MaK engines in the BeNeLux and the Netherlands Antilles. The subsidiary in Marseille, Moteurs Marine Méditerranée, is the official MaK representative for France and French-speaking countries of North Africa.

With experience since 1949, Bolier has become a global solutions provider in the field of both MaK propulsion and services, as well as Cat Propulsion, EMD and Napier. Approximately 50 professional technicians follow our customers worldwide or work in Dordrecht at the largest specialized MaK workshop of North-West Europe.

Classification society Germanischer Lloyd (GL) has rated Bolier with the highest quality level (Platinum) according to the Marine Service Assessment of Caterpillar.

Engines

Bolier is the official MaK dealer in the Benelux and therefore solely offers MaK engines. The MaK engine is delivered in combination with a KBB or Napier turbine. Next to that, we offer a package deal including the MaK engine, turbines and a Berg Propulsion installation.



Propulsion engines

Our product range of MaK engines are medium-speed marine engines with power varying between 1.020 kW to 16.800 kW. The engines can be applied in a wide range of marine vessels: dry cargo ships, tankers, container feeders, dredgers, offshore support ships, fishing ships, short sea ships,  ferries and cruise ships. Bolier also offers MaK Dual Fuel or LNG engines which make your ship ready for the future and any emission requirements. All MaK engines are suitable for propulsion and generating electricity, also known as generators.



Generators

Besides propulsion engines, MaK also has generators in its product range. These MaK generators can be used in ships but also in power plants to generate power. MaK’s generator sets have a long lifespan which ensure quality and certainty.

When choosing MaK, you select a reliable product of high quality. Bolier is known as a trustworthy and experienced partner.

Besides this, you can count on excellent service after your engine has been delivered. Bolier does not only supply (used) parts, but also carries out repairs and maintenance operations on your MaK engine. Bolier’s engineers have years of experience which makes their work efficient and reliable. This way your downtime is minimised as much as possible during maintenance and/or repair of your MaK engine.



Regulations focusing on Selective Catalytic Reduction (SCR)

MaK’s SCR system is developed to meet the future IMO-lll requirements. Installing and using the SCR system is a sustainable solution to decrease NOx emissions. With this, the MaK engines preserve their typical characteristics such as efficiency and trustworthiness. The MaK SCR system is a solution for decreasing NOx emissions and consists of SCR chamber, mixing tube, urea injection system and dosing cabinet.

What are the benefits of the SCR system?

  • One-stop IMO Tier lll solution.
  • Complete marine certification society solution
  • Common control and monitoring of engine and SCR System resulting in high user friendliness
  • Corresponding maintenance schedules of SCR System and engine



Regulations focusing on DF engines (Dual-Fuel)

Dual Fuel: this is an engine with a fuel system where natural gas or bio gas is added in a diesel engine. MaK’s Dual Fuel engines have the same power as the diesel engines, meaning they have the same load. As a result they can be used in the same familiar way for each application. The main difference? The DF engines are more sustainable and meet, without any additional systems, the highest IMO norms due to their decreased NOx and CO2 emissions.



Packages

Bolier also offers total packages for the complete propulsion system aboard: MaK engine(s) in combination with Cat generator sets and a Berg Propulsion installation. This way you are only involved with one party for the entire propulsion system and this way the scope can be aligned easily.



MaK maintenance

Are you not interested in a new engine, but do you want to carry out maintenance or have maintenance be carried out by Bolier? This is possible You can dock in the harbour in Dordrecht, but our engineers can also come to you for all types of maintenance. Besides that you can order parts separately at Bolier after which you can perform maintenance on your engine yourself.



MaK Gensets

MaK generator sets are reliable, stable and maintenance friendly, and they have been approved by the main marine classification societies. The generator sets built by MaK use AEM (electric) motors. Of course, other makes can also be used at the customer’s request. Each generator set has a compact structure, so that it can be fitted easily in the engine room.



The MaK generator sets are available in 50 or 60 Hertz configurations. Each set meets the requirements of the most important marine classification societies (such as DNV and Lloyd’s).


MaK M 20 C Generator Set


As a generator set the M20 is available in a 50Hz and 60Hz version. The 50Hz version has an output range from 1,080 kWe (6M20C) to 1,625 kWe (9M20C) at 1,000 revolutions per minute. The output of the 60 Hz version ranges from 970 kWe (6M20C) to 1,450 kWe (9M20C) at 900 revolutions per minute.
Details

MaK M 25 C Generator Set


As a generator set the M25 is available in a 50Hz and 60Hz version. The 50Hz version has an output range from 1,760 kWe (6M25C) to 2,850 kWe (9M25C) at 750 revolutions per minute. The output of the 60 Hz version ranges from 1,710 kWe (6M25C) to 2,700 kWe (9M25C) at 720 revolutions per minute.
Details

MaK M 25 E generator set


The M25E engine, having a bore of 255 mm and a stroke of 400 mm, is available as generator set with 6,8 and 9 cylinders. The output ranges from 2,100 kW (6M25E) to 3,150 kW (9M25E) at 720 and 750 revolutions per minute.
Details

MaK M 32 C Generator Set


As a generator set the M32 is available in a 50Hz and 60Hz version. The 50Hz version has an output range from 2,880 kWe (6M32C) to 4,320 kWe (9M32C) at 600 revolutions per minute. The output of the 60 Hz version ranges from 2,765 kWe (6M32C) to 4,147 kWe (9M32C) at 600 revolutions per minute
Details

MaK VM 32 C Generator Set


As a generator set the VM32 is available in a 50Hz and 60Hz version. The 50Hz version has an output range from 5,760 kWe (12VM32C) to 7,680 kWe (16VM32C) at 750 revolutions per minute. The output of the 60 Hz version ranges from 5,530 kWe (12VM32C) to 7,373 kWe (16VM32C) at 720 revolutions per minute.
Details

MaK M 43 Generator Set


MaK M 43 Generator Set: The M 43 C is a four-stroke diesel engine, non-reversible, turbocharged and intercooled with direct fuel injection.
Details

MaK VM 43 Generator Set


MaK VM 43 Generator Set: The VM 43 C is a four-stroke diesel engine, non-reversible, turbocharged and intercooled with direct fuel injection.
Details

Mak Propulsion

MaK supplies an extensive range of propulsion engines (1.020 to 18.000 kW). These are reliable engines with the right capacity for each type of vessel, from small to large. They will do their job under any circumstances, wherever they are in the world.

The engines are supplied including all features. MaK engines can be combined with either a fixed or a controllable-pitch propeller. Bolier offers, in collaboration with Pon Power Nederland, Berg Propulsion propellers. Gearboxes and clutches are added to the standard features on request.




MaK M 20 C Propulsion


Introduced in 1992 the M20 engine is the smallest MaK engine of the engine programme with a bore of 200 mm and a stroke of 300 mm. This type is available as an inline version with 6, 8 and 9 cylinders. The output ranges from 1,020 kW (6M20C) to 1,710 kW (9M20C) at 900 and 1,000 revolutions per minute.
Details

MaK M 25 C Propulsion


MaK M 25 C Propulsion: The in 1996 introduced M25 engine, having a bore of 255 mm and a stoke of 400 mm, is the second smallest MaK engine of the engine programme. This type is available as an inline version with 6, 8 and 9 cylinders. The output ranges from 1,800 kW (6M25C) to 3,000 kW (9M25C) at 720 and 750 revolutions per minute.
Details

MaK M 32 C Propulsion


MaK M 32 C Propulsion: Introduced in 1994 the M32 engine, having a bore of 320 mm and a stoke of 480 mm, is available as an inline version with 6, 8 and 9 cylinders. The output ranges from 2,880 kW (6M32C) to 4,950 kW (9M32C) at 600-720/750 revolutions per minute.
Details

MaK VM 32 C Propulsion


MaK VM 32 C Propulsion: In V-version the M32 engine, having a bore of 320 mm and a stoke of 480 mm, is available with 12 and 16 cylinders. The output ranges from 5,760 kW (12VM32C) to 8,800 kW (16VM32C) at 720 and 750 revolutions per minute.
Details

MaK M 32 E/C propulsion


MaK M 32 E/C propulsion: The M32E engine, having a bore of 320 mm and a stroke of 460 mm, is available as an in-line engine with 6,8 and 9 cylinders. The output ranges from 3,300 kW (6M31E) to 4,950 kW (9M32E) at 720 and 750 revolutions per minute.
Details

MaK M 34 DF Propulsion


MaK M 34 DF Propulsion: The M34DF engine, having a bore of 340 mm and a stroke of 460 mm, is available as an in-line engine with 6,8 and 9 cylinders. The output ranges from 3,000 kW (6M34DF) to 4,500 kW (9M34DF) at 720 and 750 revolutions per minute.
Details

MaK M 43 C Propulsion


MaK M 43 C propulsion: The in 1998 introduced M43 engine, having a bore of 430 mm and a stoke of 610 mm, is the most powerful MaK engine available. This type is obtainable as an inline version with 6, 8, 7, and 9 cylinders. The output ranges from 5,400 kW (6M43C) to 9,450 kW (9M43C) at 500 and 514 revolutions per minute.
Details

MaK VM 43 C Propulsion


MaK VM 43 C Propulsion: In V-version the VM43 engine, having a bore of 430 mm and a stoke of 610 mm, is available with 12 and 16 cylinders. The output ranges from 10.800 kW (12VM43C) to 16.800 kW (16VM43C) at 500 and 514 revolutions per minute.
Details

MaK M 46 DF Propulsion


MaK M 46 DF Propulsion: The M46DF engine, having a bore of 460 mm and a stoke of 610 mm, is available as an in-line engine with 6, 7, 8 and 9 cylinders and as a V-type engine with 12, 16 and 20 cylinders. The output ranges from 5,400 kW (6M46DF) to 18,000 kW (20VM46DF) at 500 and 514 revolutions per minute.
Details

Emission solutions

Low Emission Engine (LEE)
From as early as 2000, emission reduction has been an important pillar in MaK’s development strategy. This has been formalised in the Low Emission Engine (LEE). The technologies developed within this concept aim to optimise the combustion process, whereby the emission of NOx, CO2 and soot is drastically reduced.

Dual Fuel
MaK is also responding to the increased demand for running on LNG. In 2014 the first MaK Dual Fuel engine will be available: the M 46 DF. This engine can run on both gaseous and liquid fuels. It is also possible to convert the existing M 43 C into a Dual Fuel version.

The chemical tanker Fure West houses a MaK 7 M 43 C Low Emission Engine (LEE)


Dual Fuel


Dual Fuel :Building on its marine engine legacy Caterpillar Motoren designed the M 46 DF for a variety of marine applications without sacrificing the typical MaK marine engine attributes like operational reliability and efficiency as well as serviceability. Designed to meet the stringent conditions of upcoming emission- and fuel sulfur regulation the M 46 DF
Details

Emission Reduction


Emission Reduction: Emission reduction technology is since 2000 an important pillar in the development strategy of MaK. This resulted in a Low Emission Engine (LEE) concept. The used technologies, for instance miller cycle, has been developed to optimize engine performance and lower NOx, CO2 and soot emissions
Details

Services

Bolier’s strength lies in its (practical) knowledge and knowhow of MaK engines and products. Qualified service engineers carry out maintenance and repair work all over the world. Bolier carries out repairs and maintenance for MaK engines, Napier and KBB turbines and Berg Propulsion installations. Ships can moor at the quay; propeller repairs can be carried out in one of the three stem-stern docks.

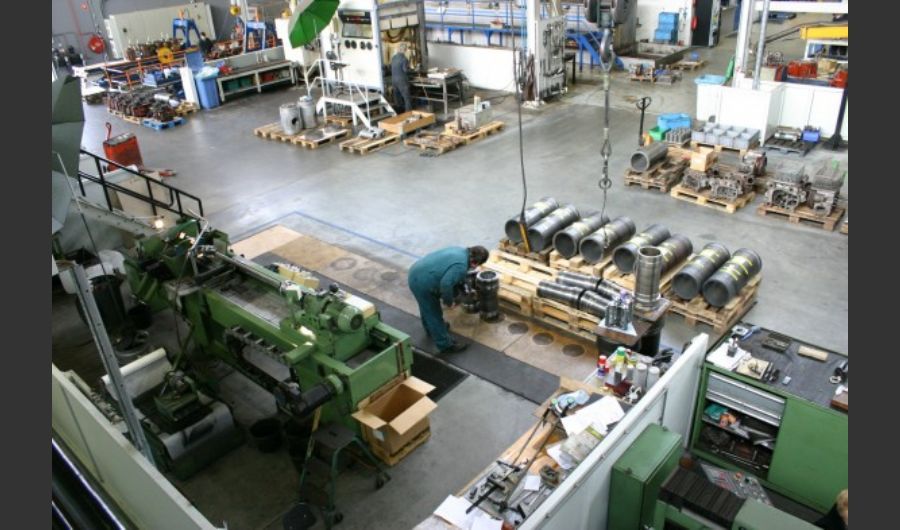

Easy docking at Bolier’s workshop

Bolier is located in Dordrecht by the water, with a quay of 140 meters long, making it easy for vessels to dock. The neighbouring workshop is fully equipped to carry out overhauls, revisions and repairs. Besides that, direct access to our extensive stock of new and used parts, ensures efficient work. This way costs and the downtime of your vessel are minimized. Klik here for more information about our new and used parts.



MaK services

As the official MaK dealer, Bolier is specialised in the maintenance of MaK engines. With their knowledge and expertise, our engineers offer the most reliable service in the field of maintenance.

We carry out maintenance for all types of MaK engines, both the current as older generations. Think of the M 20, M 25, M 282, M 32, M 332, M 43, M 453, M 46 DF, M 551, M 552 and M 601.

You can go to Bolier for repairs, maintenance and overhauling activities, but also for TA engine inspections and service contracts. For more information about our MaK services, click here.

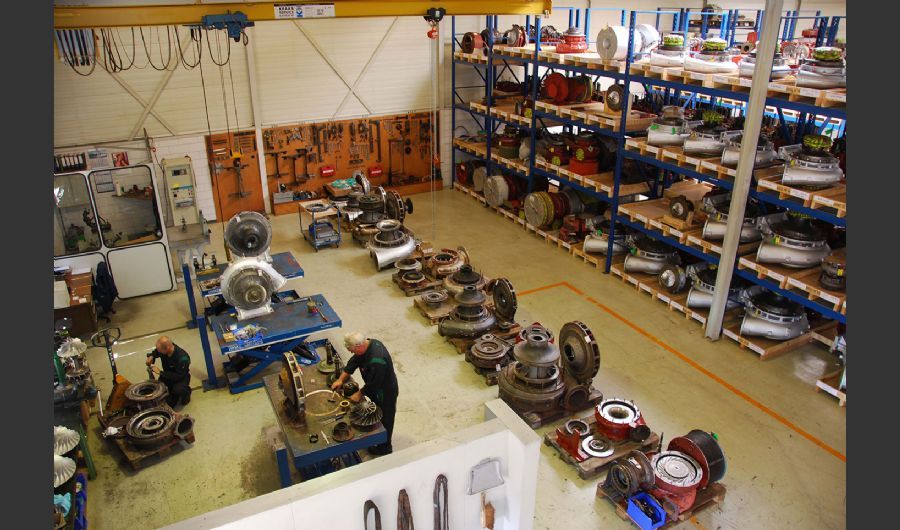

Napier and KBB turbine service

Bolier is an authorized maintenance and service centre of Napier Turbochargers and also carries out repairs on KBB turbines. All maintenance and repair activities for Napier & KBB are carried out in our workshop by experts in accordance with factory specifications. For these turbines we have a large stock of parts, in order for your Napier and KBB turbine to be revised and repaired as fast as possible. Our engineers work efficiently in order to minimize your costs.



For Napier and KBB, Bolier carries out maintenance, overhauls and repairs. On top of that we have a wide product range of exchange turbines. Click here for more information.



Berg Propulsion Service

Bolier is an official partner of Berg Propulsion and carries out service and repairs for these installations.



Berg Propulsion has an interesting history which starts in 1912. In 1929 the first propeller was delivered. Berg Propulsion was acquired by Caterpillar in 2013, which changed the name into Cat Propulsion. In 2020, Cat Propulsion was acquired back and the name was changed back to Berg Propulsion. Bolier has Berg Propulsion parts and offers Berg Propulsion service since April 1st 2017. Through our years of experience, we have extensive knowledge, knowhow and expertise in the field on marine engines and accompanying propellers. Our qualified engineers offer you:

  • Berg Propulsion parts and service.
  • Optimal uptime of your Berg Propulsion installation.
  • Fast Berg Propulsion parts delivery all over the world.



Parts Bolier

Since 1949 Bolier has provided knowledge and expertise in the field of engines, parts, generators and services for your ship. As Bolier’s mechanics are reliable and efficient, Bolier offers the best quality and with minimal costs. This way your uptime is optimised as much as possible. Moreover, Bolier governs a product range of new parts by different brands and product types.

MaK Parts

Bolier is the official dealer of MaK marine engines & generators in the Benelux. Bolier features the biggest parts stock in Europe. By using original parts, the reliability and performance of your engine is being optimised. Bolier ships these parts worldwide in order for you to be able to carry out maintenance operations on the engine yourself. Besides that, Bolier’s mechanics also come to you on location. For more information about the new MaK parts click here.

BERG Propulsion Parts

Bolier is a partner of Berg Propulsion and delivers parts and services for your installation. The Berg parts are delivered as soon as possible worldwide. Bolier features a team of specialists who help with the commissioning, maintenance and/or repair of your Berg Propulsion installation.
